    70TT001NEA

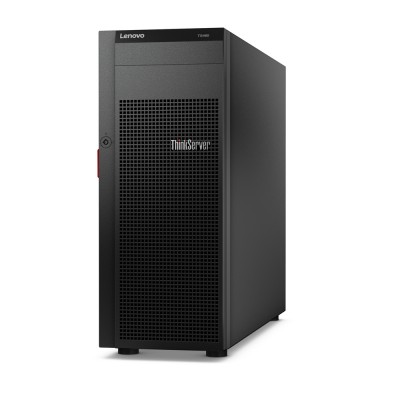

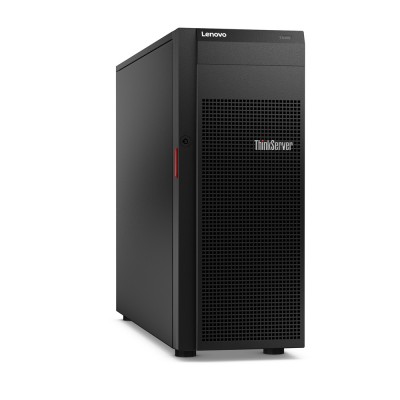

    serwer TopSeller TS460, Intel Xeon E3-1240 v5 3.5GHz/2133MHz/ 16GB O/Bay, 2x450W p/s in SR 520i

    P/N: 70TT001NEA
    Manufacturer: Lenovo

    Ask our experts about:

    - the equivalent of a third-party
    - The same product in a different than the new state (eg, refurbished)
    - Other / alternative solution

    Availability

    Price and flexible funding

    Negotiate the price if:

    - you don't fit in your budget
    - you buy more than one piece
    - you are our regular customer
    - to check how flexible our prices are!

    Find out about our
    pricing
    Are you a Reseller?

    We can offer you additional benefits and long-term cooperation! Contact us for more details !

    Help Zone

    GRATIS

    Consultations

    Call us: +48 71 738 25 31

    Mail us: office@112it.com

    > we'll advise you in your selection
    > we'll rescue your IT project
    > we'll search the whole world for you!

    Adjust further:

    Think about selecting the option for the equipment you wish to purchase.

    portoflio have the option not only to the current models offered by the manufacturer, but also to older models that are no longer produced.

    Additional information

    Technical detailsCPU configuration (max)1
    Chassis typeTower (4U)
    Operating system/softwareOperating system installedNie
    Compatible operating systemsMicrosoft Windows Server 2016/2012 R2. Red Hat Enterprise Linux 6.8. VMware\nvSphere (ESXi) 6.0U2/6.5
    CertificatesEnergy Star certifiedTak
    Weight & dimensionsHeight443.5 millimeter
    Depth593 millimeter
    Width173 millimeter
    PowerPower supply450 Watt
    Number of redundant power supplies supported2
    Number of redundant power supplies installed2
    Redundant power supply (RPS) supportTak
    Expansion slotsPCI Express slots version3.0
    PCI Express x16 (Gen 3.x) slots1
    PCI Express x8 (Gen 3.x) slots1
    PCI Express x4 (Gen 3.x) slots1
    PCI Express x4 (Gen 2.x) slots1
    PCI Express x1 (Gen 3.x) slots1
    Ports & interfacesVGA (D-Sub) ports quantity1
    Ethernet LAN (RJ-45) ports2
    Serial ports quantity1
    NetworkingEthernet LANTak
    Cabling technology10/100/1000Base-T(X)
    Optical driveOptical drive typeDVD±RW
    MemoryMemory clock speed2133 megahertz
    Memory slots4
    ECCTak
    Memory layout (slots x size)1 x 16 gigabyte
    Internal memory typeDDR4-SDRAM
    Maximum internal memory64 gigabyte
    Internal memory16 gigabyte
    StorageMaximum storage capacity64 TeraByte
    Number of hard drives supported8
    RAID supportTak
    Hard drive interfaceSerial ATA,Serial Attached SCSI (SAS)
    Hard drive size2.5 inch
    ProcessorTurbo frequency (max)3.90 gigahertz
    Processor socketSocket H4 (LGA 1151)
    System bus rate8 Gigatranfers per second
    Number of processors installed1
    Processor cores4
    Processor modelE3-1240V5
    Processor familyIntel Xeon E3 v5
    Processor clock speed3.5 gigahertz
    - A choice of Intel® processor types, including Xeon® E3-1200 v5 family, Core® i3, and Pentium®
    - Up to 64GB 2133MHz DDR4 memory
    - Up to 8x 3.5-inch, or 16x 2.5-inch, or 4x 3.5-inch + 8x 2.5-inch bays
    - Supports internal M.2 SSD
    - Software RAID standard; optional hardware RAID
    - 2x built-in 1GbE network interface ports, plus 1x dedicated management port
    - Optional 2- or 4-port 1GbE NICs, and 1- or 2-port 10GbE NICs
    - Choice of fixed or hot-swap/redundant drives and PSUs
    - Support for several server and client operating systems
    - Supports Lenovo XClarity for single-application systems management

    Flexible and Scalable

    The Lenovo ThinkServer TS460 offers flexibility in configuration: a choice of processors, including enterprise-class Intel® Xeon® E3-1200 Processor v5 series, as well as Core® i3 and Pentium® processors. Up to 64GB of ECC 2133MHz DDR4 UDIMM memory capacity enables you to run larger workloads, complete them faster, and virtualize for more efficient server usage.
    Storage options include combinations of 5.25-inch optical/tape drives, 3.5-inch HDDs, and 2.5-inch HDDs/SSDs, plus support for an M.2 SSD. The 64TB of hot-swap SAS/SATA storage capacity is the industry’s largest for an entry tower server. The TS460 is ideal for storage-intense workloads and supports all major server operating systems for complete flexibility.

    Enterprise Quality and Manageability

    Enterprise-quality features include an IPMI 2.0-compliant ThinkServer Management Module (TMM), WebUI support, Lenovo XClarity software for easy centralized management, and a dedicated Ethernet port for systems management.
    Availability and security options include hot-swap drives; 6Gb and 12Gb hardware RAID; hot-swap/redundant power; ECC memory; multiple 1Gb/10Gb Ethernet adapters with failover support; internal LTO tape, RDX cartridges, and rewritable DVDs for backup; and an optional TPM module.

    Remote Office/Branch Office Use

    The TS460 is optimized for remote office/branch office (ROBO) use. Its office-quiet acoustics and compact size (suitable for deskside or under-desk deployment) are perfect for an office environment, and the combination of energy-efficient processors, 1.2V DDR4 memory, and 80 PLUS Gold (up to 92% efficient) power supplies saves you money and helps the environment.
