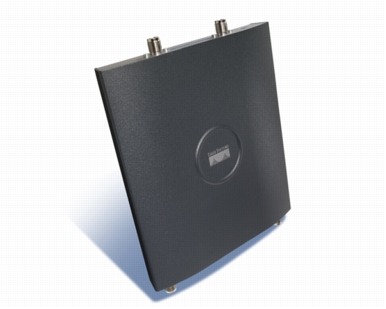

    AIR-AP1242AG-T-K9

    802.11A/G NON-MODULAR IOS AP

    P/N: AIR-AP1242AG-T-K9
    EAN: 0882658021978
    Manufacturer: Cisco

    Ask our experts about:

    - the equivalent of a third-party
    - The same product in a different than the new state (eg, refurbished)
    - Other / alternative solution

    Availability

    Price and flexible funding

    Negotiate the price if:

    - you don't fit in your budget
    - you buy more than one piece
    - you are our regular customer
    - to check how flexible our prices are!

    Find out about our
    pricing
    Are you a Reseller?

    We can offer you additional benefits and long-term cooperation! Contact us for more details !

    Help Zone

    GRATIS

    Consultations

    Call us: +48 71 738 25 31

    Mail us: office@112it.com

    > we'll advise you in your selection
    > we'll rescue your IT project
    > we'll search the whole world for you!

    Adjust further:

    Think about selecting the option for the equipment you wish to purchase.

    portoflio have the option not only to the current models offered by the manufacturer, but also to older models that are no longer produced.

    Additional information

    Illumination/AlarmsLED indicatorsLAN
    AntennaAntenna connector typeRP-TNC
    Antenna gain level (max)3.5 gain
    Technical detailsWeight2.0 pounds
    Transmit power802.11a - OFDM: 17 dBm (50 mW), 15 dBm (30 mW), 14 dBm (25 mW), 11 dBm (12 mW), 8 dBm (6 mW), 5 dBm (3 mW), 2 mW (2 dBm), –1 dBm (1 mW); 802.11g - CCK: 20 dBm (100 mW), 17 dBm (50 mW), 14 dBm (25 mW), 11 dBm (12 mW), 8 dBm (6 mW), 5 dBm (3 mW), 2 dBm (2 mW), –1 dBm (1 mW); OFDM: 17 dBm (50 mW), 14 dBm (25 mW), 11 dBm (12 mW), 8 dBm (6 mW), 5 dBm (3 mW), 2 dBm (2 mW), –1 dBm (1 mW) decibel-to-milliwatt
    Receiver sensitivity802.11a\n- 6 Mbps: -88 dBm\n- 9 Mbps: -87 dBm\n- 12 Mbps: -86 dBm\n- 18 Mbps: -85 dBm\n- 24 Mbps: -82 dBm\n- 36 Mbps: -79 dBm\n- 48 Mbps: -74 dBm\n- 54 Mbps: -73 dBm\n802.11g\n- 1 Mbps: -96 dBm\n- 2 Mbps: -93 dBm\n- 5.5 Mbps: -91 dBm\n- 6 Mbps: -91 dBm\n- 9 Mbps: -85 dBm\n- 11 Mbps: -88 dBm\n- 12 Mbps: -83 dBm\n- 18 Mbps: -81 dBm\n- 24 Mbps: -78 dBm\n- 36 Mbps: -74 dBm\n- 48 Mbps: -73 dBm\n- 54 Mbps: -73 dBm
    Operating temperature (T-T)-4 - 131 Fahrenheit
    Frequency range5250 - 5350 megahertz
    MemoryFlash memory16 megabyte
    Internal memory32 megabyte
    Operating system/softwareBundled softwareCisco IOS Software
    PowerPower requirements100 - 240 VAC; 50 - 60Hz
    Power over Ethernet (PoE) supportTak
    Power consumption (typical)12.95 Watt
    CertificatesCompliance industry standardsIEEE 802.11g, IEEE 802.11a
    SafetyUL 60950-1, CAN/CSA-C22.2 No. 60950-1, UL 2043, IEC 60950-1, EN 60950-1, NIST FIPS 140-2 l2
    Certification- FCC 15.247, 15.407 \n- RSS-210\n- EN 300.328, EN 301.893\n- ARIB-STD 33\n- ARIB-STD 66\n- ARIB-STD T71\n- AS/NZS 4268.2003\n- EMI\n- FCC 15.107, 15.109\n- ICES-003\n- VCCI\n- EN 301.489-1, -17\n- EN 60601-1-2 EMC 93/42/EEC\n- FCC OET-65C \n- RSS-102 \n- EN 50155, EN 50121-3-2
    Operational conditionsStorage temperature (T-T)-40 - 85 degrees Celcium
    Operating temperature (T-T)-20 - 55 degrees Celcium
    Operating relative humidity (H-H)10 - 90 percent
    Weight & dimensionsWeight907 gram
    Dimensions (WxDxH)167.6 x 215.9 x 27.9 millimeter
    SecuritySecurity algorithmsWPA, WPA-AES, WPA-TKIP, WPA2
    Ports & interfacesDC-in jackTak
    Wireless LAN featuresWireless technologyIEEE 802.11a/b/g
    Maximum operating distance290 meter
    Channels quantity11
    Outdoor range802.11a: \n- 100 ft (30 m) @ 54 Mbps\n- 300 ft (91 m) @ 48 Mbps \n- 425 ft (130 m) @ 36 Mbps \n- 500 ft (152 m) @ 24 Mbps \n- 550 ft (168 m) @ 18 Mbps \n- 600 ft (183 m) @ 12 Mbps \n- 625 ft (190 m) @ 9 Mbps \n- 650 ft (198 m) @ 6 Mbps \n802.11g: \n- 120 ft (37 m) @ 54 Mbps \n- 350 ft (107 m) @ 48 Mbps \n- 550 ft (168 m) @ 36 Mbps \n- 650 ft (198 m) @ 24 Mbps \n- 750 ft (229 m) @ 18 Mbps \n- 800 ft (244 m) @ 12 Mbps \n- 820 ft (250 m) @ 11 Mbps \n- 875 ft (267 m) @ 9 Mbps \n- 900 ft (274 m) @ 6 Mbps \n- 910 ft (277 m) @ 5.5 Mbps \n- 940 ft (287 m) @ 2 Mbps \n- 950 ft (290 m) @ 1 Mbps
    Frequency band2.412 - 2.462 gigahertz
    Indoor range802.11a: \n- 85 ft (26 m) @ 54 Mbps \n- 150 ft (46 m) @ 48 Mbps \n- 210 ft (64 m) @ 36 Mbps \n- 230 ft (70 m) @ 24 Mbps \n- 260 ft (79 m) @ 18 Mbps \n- 280 ft (85 m) @ 12 Mbps \n- 310 ft (94 m) @ 9 Mbps \n- 330 ft (100 m) @ 6 Mbps\n802.11g: \n- 105 ft (32 m) @ 54 Mbps \n- 180 ft (55 m) @ 48 Mbps \n- 260 ft (79 m) @ 36 Mbps \n- 285 ft (87 m) @ 24 Mbps \n- 330 ft (100 m) @ 18 Mbps \n- 355 ft (108 m) @ 12 Mbps \n- 365 ft (111 m) @ 11 Mbps \n- 380 ft (116 m) @ 9 Mbps \n- 410 ft (125 m) @ 6 Mbps \n- 425 ft (130 m) @ 5.5 Mbps \n- 445 ft (136 m) @ 2 Mbps \n- 460 ft (140 m) @ 1 Mbps
    Data transmissionSupported data transfer rates802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps; 802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 Mbps
    Data transfer rate (max)108 megabit per second
    AIR-AP1242AG-T-K9

    Please note that despite all efforts to the specification may be out of date, and posted pictures do not always correspond to the actual appearance of the product.
