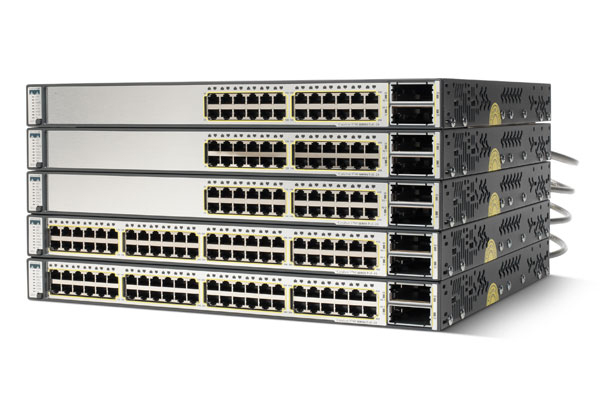

    WS-C3750E-48PD-EF

    Catalyst 3750E 48 10/100/1000

    P/N: WS-C3750E-48PD-EF
    EAN:   0882658132544
    0636380004576

    Manufacturer: Cisco

    Ask our experts about:

    - the equivalent of a third-party
    - The same product in a different than the new state (eg, refurbished)
    - Other / alternative solution

    Condition

    new
    Available options:

    Availability

    Price and flexible funding

    Negotiate the price if:

    - you don't fit in your budget
    - you buy more than one piece
    - you are our regular customer
    - to check how flexible our prices are!

    Find out about our
    pricing
    Are you a Reseller?

    We can offer you additional benefits and long-term cooperation! Contact us for more details !

    Help Zone

    GRATIS

    Consultations

    Call us: +48 71 738 25 31

    Mail us: office@112it.com

    > we'll advise you in your selection
    > we'll rescue your IT project
    > we'll search the whole world for you!

    Adjust further:

    Think about selecting the option for the equipment you wish to purchase.

    portoflio have the option not only to the current models offered by the manufacturer, but also to older models that are no longer produced.

    Additional information

    Other featuresPacket transfer speed6.5 mpps
    Networking featuresEthernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
    Connectivity LEDsy
    Input frequency50/60 Hertz
    Input voltage115 - 240 Volt
    Bandwidth64 gigabit per second
    Connectivity technologyWired
    Dimensions (WxDxH)445 x 460 x 44.5 millimeter
    Power over Ethernet (PoE)Power over Ethernet (PoE) supportTak
    Operational conditionsHeat dissipation3924 British thermal unit per hour
    MemoryInternal memory256 megabyte
    Flash memory64 megabyte
    Operational conditionsOperating temperature (T-T)32 - 113 Fahrenheit
    Non-operating altitude0 - 4573 meter
    Operating altitude0 - 3049 meter
    Storage relative humidity (H-H)0 - 95 percent
    Operating relative humidity (H-H)10 - 85 percent
    Storage temperature (T-T)-25 - 70 degrees Celcium
    Operating temperature (T-T)0 - 45 degrees Celcium
    CertificatesSafetyUL60950-1, C-UL to CAN/CSA 22.2 No.60950-1, TUV/GS - EN 60950-1, CB to IEC 60950-1, AS/NZS 60950-1, CE Marking, CCC PS FRU, NOM, GOST
    Technical detailsMean time between failures (MTBF)149667 hour
    Noise level48 decibel
    StackableTak
    PowerInput current6/12 Ampere
    Power consumption (typical)1150 Watt
    Weight & dimensionsWeight20.9 pounds
    Dimensions (W x D x H)17.5 x 18.1 x 1.75 inch
    Weight9500 gram
    ProtocolsSwitching protocolsBGPv4, OSPF, IGRP, EIGRP, RIPv1, RIPv2, IS-ISv4
    Management protocolsSNMP, SNMPv2, SNMPv3, RMON, Telnet, TACACS+, RADIUS
    SecurityMAC address filteringTak
    Access Control List (ACL)Tak
    SSH/SSL supportTak
    Data transmissionJumbo frames supportTak
    Maximum data transfer rate10 gigabit per second
    Number of VLANs1005
    NetworkingLink aggregationTak
    Broadcast storm controlTak
    Rate limitingTak
    DHCP serverTak
    IP routingTak
    IGMP snoopingTak
    Auto MDI/MDI-XTak
    Spanning tree protocolTak
    Full duplexTak
    Networking standardsIEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    Ports & interfacesConsole portRS-232
    SFP/SFP+ slots quantity2
    Basic switching RJ-45 Ethernet ports quantity51, 48, 51
    Management featuresMIB supportBRIDGE-MIB, CISCO-CDP-MIB, CISCO-CLUSTER-MIB, CISCO-CONFIG-MAN-MIB, CISCO-ENTITY-FRU-CONTROL-MIB, CISCO-ENVMON-MIB, CISCO-FLASH-MIB, CISCO-FTP-CLIENT-MIB, CISCO-HSRP-MIB, CISCO-HSRP-EXT-MIB, CISCO-IGMP-FILTER-MIB, CISCO-IMAGE-MIB, CISCO-IP-STAT-MIB, CISCO-L2L3-INTERFACE-CONFIG-MIB, CISCO-POE-EXTENSIONS-MIB, CISCO-MAC-NOTIFICATION-MIB, CISCO-MEMORY-POOL-MIB, CISCO-PAGP-MIB, CISCO-PING-MIB, CISCO-PROCESS-MIB, CISCO-RTTMON-MIB, CISCO-STP-EXTENSIONS-MIB, CISCO-SYSLOG-MIB, CISCO-TCP-MIB, CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB, CISCO-VLAN-MEMBERSHIP-MIB, CISCO-VTP-MIB, ENTITY-MIB, ETHERLIKE-MIB, IF-MIB, IGMP-MIB, IPMROUTE-MIB, OLD-CISCO-CHASSIS-MIB, OLD-CISCO-FLASH-MIB, OLD-CISCO-INTERFACES-MIB, OLD-CISCO-IP-MIB, OLD-CISCO-SYS-MIB, OLD-CISCO-TCP-MIB, OLD-CISCO-TS-MIB, OSPF-MIB (RFC 1253), PIM-MIB, RFC1213-MIB, RFC1253-MIB, RMON-MIB, RMON2-MIB, SNMP-FRAMEWORK-MIB, SNMP-MPD-MIB, SNMP-NOTIFICATION-MIB, SNMP-TARGET-MIB, SNMPv2-MIB, TCP-MIB, UDP-MIB.
    Quality of Service (QoS) supportTak
    Multicast supportTak
    Switch typeManaged
    WS-C3750E-48PD-EF
